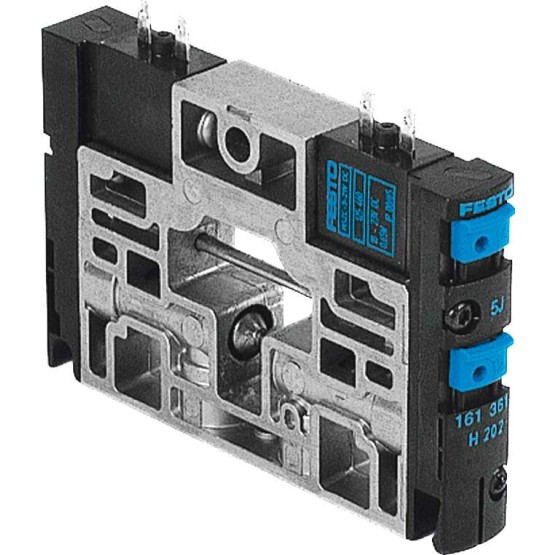

Solenoid Valve is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .


FESTO Order Number:553259

SKU: CPV14-M1H-2X3-GLS-K-1/8 Category: Tag:


Valve function 3/2 closed monostable
Actuation type Electrical
Valve size [mm] 14
Normal nominal flow [l/min] 800
Operating pressure [bar] -0.9 to 10
Construction set up Piston pusher
Reset mode Pneumatic spring
Protection category IP65
Nominal width [mm] 6
Exhaust function Cannot be throttled
Sealing principle Soft
installation position arbitrary
Hand assist actuation Ratchetingtentative
Control type pilot operated
Control air supply externalInternal
Flow direction Not reversible
??berdeckung positive ??berdeckung
Control pressure [bar] 3 to 8
b-value 0.42
C-value [l/sbar] 3,20
Shifting time off [ms] 30
Shifting time on [ms] 24,0
Power-on time 100 % mit Haltestromabsenkung
Electrical power consumption [W] 0,65
Max. positive test impulse at 0 signal [??s] 1.400
Max. negative test impulse for 1 signal [??s] 400
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Oscillation strength Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistance Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistant class KBK 2 – moderate corrosion stress
Bearing temperature [??C] -20 to 40
Medium temperature [??C] -5 to 50
ambient temperature [??C] -5 to 50
Product weight [g] 120
Fastening type With throughway bores
Support air control connection 12/14 Hunt group
Exhaust control connection 82/84 Hunt group
Pneumatic connection 1 Hunt group with pressure separation
Pneumatic connection 2 G1/8
Pneumatic connection 3/5 combined Hunt group
Pneumatic connection 4 G1/8
Material information RoHs compliant
Seals material HNBRNBR
Housing material POMPPSAluminium die castingbrassSteel
Pneumatic connection 11 Hunt group with pressure separation
