Home » Products » CPX-CEC-M1-V3

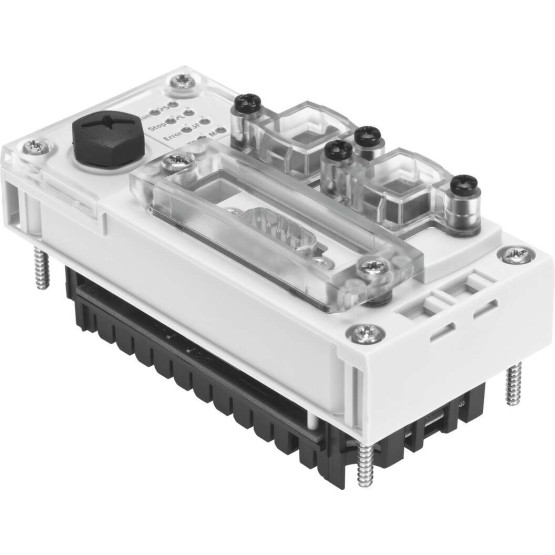

CPX-CEC-M1-V3

$1,593.88

Control Block is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:CPX-CEC-M1-V3

FESTO Order Number:3472765

SKU: CPX-CEC-M1-V3 Category: Tag:

Description

Dimensions W x L x H 50 mm x 107 mm x 55 mm
Device specific diagnosis Diagnose-SpeicherKanal- und modulorientierte DiagnoseUnterspannung/Kurzschluss Module
CPU data 32 MB flash256 MB RAMProcessor 800 Hz
Configuration support CODESYS V3
Parameterising CODESYS V3
Total number of axes 31
Additional functions Diagnose functionsSoftmotion functions for electrical actuator
Operating element Rotary switch for RUN/StopDIL switch for CAN connection
Programming, operating language DE, EN
Programming, support file handling yes
Processing time approx. 200 ??s/1 k instruction
Intrinsic power input at operating voltage type 85 mA
Setting IP address DHCPover MMIover CoDeSys
Functional building block CPX diagnosis statusCPX copy diagnosis traceCPX read module diagnosisand other
Marker Variable concept CoDeSys28 kB residual data
Nominal operating voltage DC load voltage 24 VWith pneumatic type Midi/Maxi: 21.6 … 26.4VWith pneumatic type CPA: 20.4 … 26.4VWith pneumatic type MPA: 18 … 30VWithout pneumatic: 18 … 30V
Nominal operating voltage DC [V] 24
Power blackout bridging [ms] 10
Programming software CODESYS provided by Festo
Programming language Instruction list (AWL)Contact diagram (KOP)acc. to IEC 61131-3Sequence languageFunction planStructured textAdditional CFC
Programming memory 16 MB user program
Corrosion resistant class KBK 2 – moderate corrosion stress
Bearing temperature [??C] -20 to 70
Relative humidity 95 %Not condensing
Protection category IP65IP67
ambient temperature [??C] -5 to 50
Product weight [g] 135
Ethernet, number 1
Ethernet, data transfer speed 10/100 Mbit/s
Ethernet supported protocols TCP/IP, EasyIP, Modbus TCP
Ethernet, connection plug RJ458 pinBushing
Fieldbus interface, galvanically separated yes
Fieldbus interface, transfer rate 125, 250, 500, 800, 1000kbit/scan be set via software
Fieldbus interface, connection technology Sub-D9 pinPlug
Fieldbus interface CAN bus
Report CODESYS Level 2EasyIPModbus TCPTCP/IP
Control interface CAN bus
Ethernet interface RJ 45 (jack, 8-pin)
LED display bus specific TP: Link / traffic
LED display product specific ERR: Runtime error PLCM: Modify/force activePL: Load supplyRUN: PLC statusSF: System errorSTOP: PLC statusPS: Electronics supply, sensor supply
Material information RoHs compliant
Housing material PCPA reinforced
