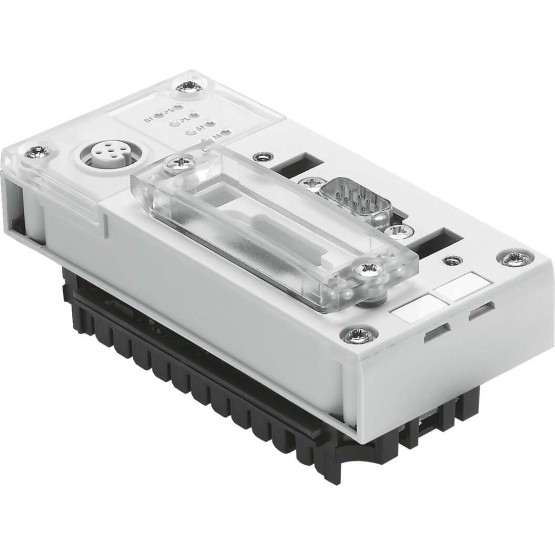

CPX-FB13

CPX-FB13

$500.76

Bus Node is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:CPX-FB13

FESTO Order Number:195740

SKU: CPX-FB13 Category: Tag:

Description

Dimensions W x L x H 50 mm x 107 mm x 50 mm(Incl. linking block)
Parameterising SystemparameterFailsafe-ReaktionDiagnoseverhaltenForcen von Kan?lenSignal-Setup
Additional functions Start-up parameterisation in text via field busSystem status can be shown from process datAdditional diagnosis interface for control panel- Acyclical data access via “DPV1″Channel related diagnosis via fieldbus
Operating element DIL switch
Operating voltage range DC [V] 18 to 30
Intrinsic power input at operating voltage Type 200 mA
Nominal operating voltage DC [V] 24
Corrosion resistant class KBK 1 – low corrosion stress
Bearing temperature [??C] -20 to 70
Protection category IP65IP67
ambient temperature [??C] -5 to 50
Product weight [g] 115,0
Max. address volume outputs [Byte] 64
Max. address volume inputs [Byte] 64
Report Profibus DP
Housing material PCPA reinforced
Fieldbus interface 2x M12x1, 5 pin, B-codedSocket Sub-D, 9 pinSub-D plug can be populated
Device specific diagnosis Unterspannung ModuleDiagnose-SpeicherKanal- und modulorientierte Diagnose
Configuration support GSD file
Baud rate 96 … 12000 kBit/s
LED display bus specific BF: Bus error
LED display product specific PL: Load supplySF: System errorM: Modify, parameterisationPS: Electronics supply, sensor supply
Communication types DPV0: Cyclical communicationDPV1: Acyclical communication
