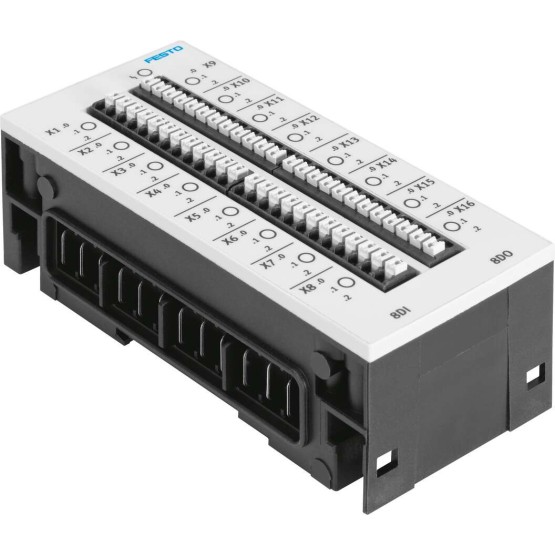

CPX-M-FB21

CPX-M-FB21

$1,638.22

Bus Node is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:CPX-M-FB21

FESTO Order Number:572221

SKU: CPX-M-FB21 Category: Tag:

Description

Dimensions W x L x H 100 mm x 110 mm x 130 mm(Incl. linking block)
Parameterising SystemparameterFailsafe-ReaktionDiagnoseverhaltenForcen von Kan?lenSignal-Setup
Additional functions Systemstatus ??ber Prozessdaten abbildbarZus?tzliche Diagnose-Schnittstelle f??r Bedienger?teModul- und Systemparametrierung ??ber Bedienger?te
Operating element DIL switch
Operating voltage range DC [V] 18 to 30
Intrinsic power input at operating voltage Type 90 mA
Nominal operating voltage DC [V] 24
Corrosion resistant class KBK 0 – No corrosion stressing
Bearing temperature [??C] -20 to 70
Protection category IP65IP67
ambient temperature [??C] -5 to 50
Product weight [g] 1.255,0
Max. address volume outputs [Byte] 12
Max. address volume inputs [Byte] 12
Report Interbus
Material information RoHs compliant
Housing material Aluminium
Fieldbus interface (Rugged line FO conn. ,input)(Rugged line FO conn. ,output)Rugged Line LWL connection, goingRugged Line LWL connection, incoming
Device specific diagnosis Unterspannung ModuleDiagnose-SpeicherKanal- und modulorientierte Diagnose
Baud rate 500, 2000 kBit/s
LED display bus specific FO1: Fiber Optic 1FO2: Fiber Optic 2RC: Remote bus checkRD: Remote bus disableOM: Bus activeUL: Operating voltage
LED display product specific SF: System errorM: Modify, parameterisationUS1: Electronic supply, sensor supplyUS2: Load supply
CE certificate (see declaration of conformity) to EU EMC directive
