Description
Piston diameter 100 mm
installation position arbitrary

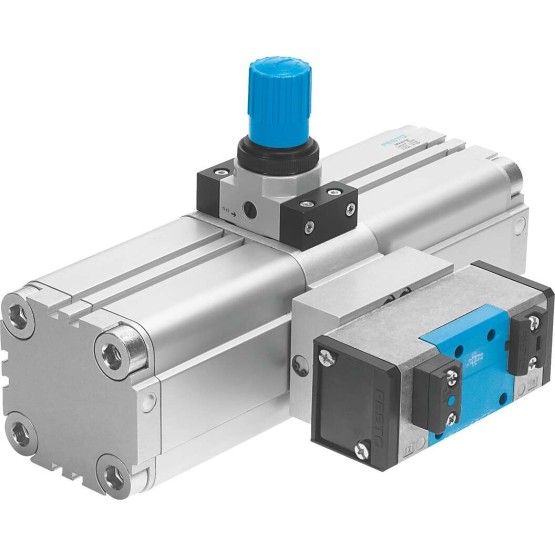

Construction set up Double piston pressure transducerWith Magnetic piston
pressure display G1/4 prepared
Output pressure 2 [bar] 4 to 10
Operating pressure [bar] 2 to 8
Pressure regulation range [bar] 4 to 10
Input pressure 1 [bar] 2 to 8
Hinweis zum Druckregelbereich Bei maximal gespannter Reglerfeder kann der maximale Ausgangsdruck um 40 % ??berschritten werden.
Operating medium Compressed air to ISO 8573-1:2010 [7:3:4]
Information about operating and control medium Oiled operation not possible
Corrosion resistant class KBK 2 – moderate corrosion stress
Bearing temperature [??C] 5 to 60
ambient temperature [??C] 5 to 60
Product weight [g] 13.000
Fastening type with female thread
Pneumatic connection 1 G1/2
Pneumatic connection 2 G1/2
Pneumatic connection 3 G1/2
Material information RoHs compliant
