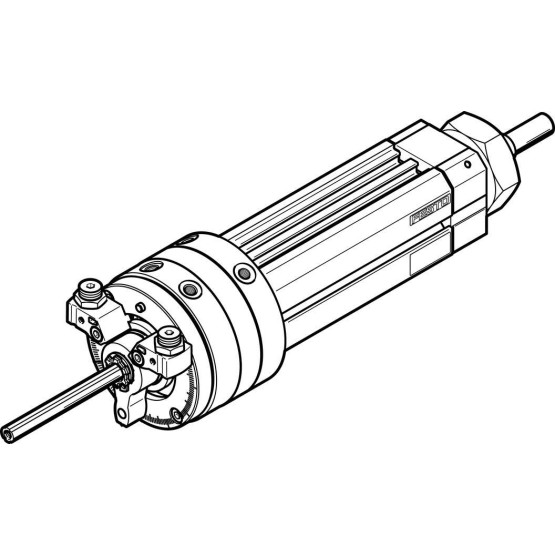

DSL-40-50-270-P-A-S2-B

$2,109.20

Swivel/Linear Unit is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:DSL-40-50-270-P-A-S2-B

FESTO Order Number:556546

SKU: DSL-40-50-270-P-A-S2-B Category: Tag:

Description

Settings range swivel angle [deg] 0 to 270
Stroke [mm] 50
Piston diameter 40 mm
Swivel angle [deg] 0 to 272
Dampening P: Elastic silencer rings / plates double-sided
installation position arbitrary
Fine adjustment [deg] -6
Principle of operation double acting
Construction set up Rotary vane
Position detection For proximity switch
Variants continuous piston rod
Anti-twist lock / guide Slide guided
Operating pressure [bar] 2.5 to 8
Max. impact speed [m/s] 0,5
Max. swivel frequency at 6 bar [Hz] 2,0
Swivel angle play [deg] 2,00
Repeatability [deg] 1,0
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 1 – low corrosion stress
ambient temperature [??C] -10 to 60
Dynamic load torque [Nm] 1,10
Theoretical force at 6 bar, Return flow [N] 495,0
Theoretical force at 6 bar, flow [N] 660,0
Theoretical torque at 6 bar [Nm] 20,00
Permitted mass moment of inertia [kg/m2] 0,00024
Weight supplement per 10 mm stroke [g] 170
Base weight at 0 mm stroke [g] 5.000
Product weight [g] 5.000
Fastening type clamped in t-slotWith Male threadSelectively:
Pneumatic connection G1/8
Cover material Aluminium wrought alloyanodized
Seals material TPE-U(PU)
Housing material Aluminium wrought alloySmooth anodised
Piston rod material Quenched and tempered steel
