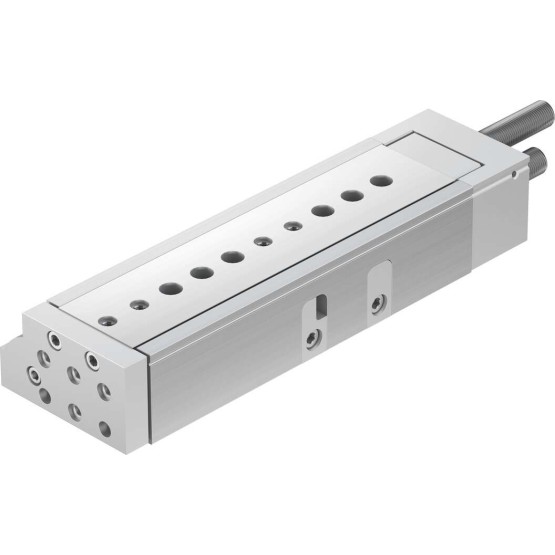

EGSK-20-25-1P

EGSK-20-25-1P

$1,127.63

Electric Slide is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:Egsk-20-25-1P

FESTO Order Number:562758

SKU: EGSK-20-25-1P Category: Tag:

Description

Working stroke [mm] 25
size 20
Reversing play [??m] <= 20 ??m Spindle diameter [mm] 6 Spindle pitch [mm/U] 1 installation position arbitrary Guide ball guide Construction set up Electro-mechanical linear axisWith Ball screw drive Referencing Reference switch Spindle type Ball screw drive Max. acceleration [m/s2] 10 Max. speed [m/s] 0,19 Repeatability ??0.01 mm Corrosion resistant class KBK 0 - No corrosion stressing Protection category IP10 ambient temperature [??C] 0 to 40 Dynamic load factor fixed bearing [N] 1.000 Dynamic load factor linear guide [N] 2.849 Dynamic load factor ball screw drive [N] 660 Flat torque 2nd grade ly [mm4] 6.100 Flat torque 2nd grade lz [mm4] 62000 Max. actuator torque [Nm] 0,011 Max. force Fy [N] 1.389 Max. force Fz [N] 1.389 Max. torque Mx [Nm] 18,1 Max. torque My [Nm] 5,8 Max. torque Mz [Nm] 5,8 Max. feed force Fx [N] 69 Empty run actuator torque [Nm] 0,005 Static load factor ball screw drive [N] 1.170 Static load factor linear guide [N] 6.300 Mass inertia JH per metre stroke [kg/cm2] 0,0100 Mass inertia JO [kg/cm2] 0,00087 Feed constant [mm/U] 1 Static load factor fixed bearing [N] 1.240 Guideline running performance [km] 500 Moving mass [g] 64 Carriage weight [g] 64 Additional carriage weight [g] 64 Weight supplement per 10 mm stroke [g] 27 Base weight at 0 mm stroke [g] 380 Product weight [g] 448 Fastening type With Female thread and dowel pin Closing cover material Aluminium die castingCoated Profile material High-alloyed stainless steels Material information LABS containing materials includedRoHs compliant Actuator cover material Aluminium die castingCoated Carriage material Steel Spindle nut material Steel Spindle material Steel
