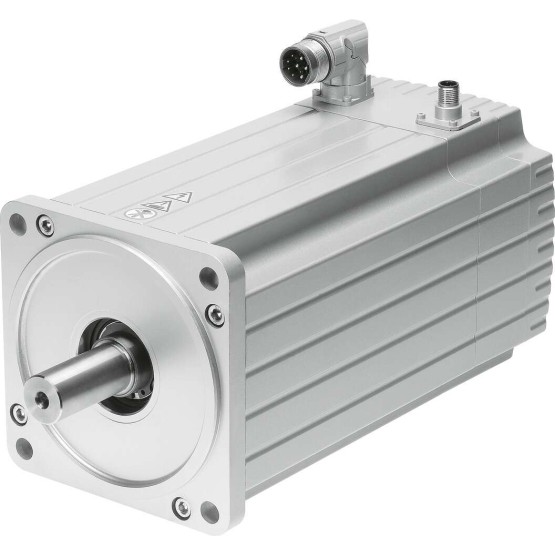

Description
ambient temperature [??C] -40 to 40
Bearing temperature [??C] -20 to 60
Relative humidity 0 – 90 %
Complies to standard IEC 60034
Insulation protection class F
Measurement class according to DIN 60034-1 S1
Temperature monitoring PTC resistance
Protection category IP65
Electrical connection technology Plug
Material information RoHs compliant
Corrosion resistant class KBK 2 – moderate corrosion stress
Permission RCM markc UL us – Recognized (OL)
CE certificate (see declaration of conformity) to EU EMC directiveto EU low voltage directive
Nominal voltage DC [V] 565
Winding switching type Star internal
Polpaarzahl 6
Standstill torque [Nm] 25,50
Nominal torque [Nm] 17,41
Peak torque [Nm] 67,5
Nominal rotational speed [1/min] 2.800
Max. speed [1/min] 3.830
Nominal performance motor [W] 5.110
Nominal current motor [A] 9,96
Peak current [A] 51,5
Motor constant [Nm/A] 1,750
Voltage constant phase-phase [mVmin] 104,41
Winding resistance phase-phase [Ohm] 0,586
Winding inductivity phase-phase [mH] 4,65
Total output moment of gyration [kg/cm2] 18,400
Product weight [g] 16.440
Permitted axial shaft loading [N] 200
Permitted radial shaft loading [N] 1.060
Rotor position transducer Resolver
Rotor position transducer interface SIN/COs analogue signals
Rotor position transducer measurement principle Inductive
MTTF, part component 114 years, rotor position sensor
MTTFd, part component 228 years, rotor position sensor
Shaft design feather key DIN 6885A 8 x 7 x 40
