Home » Products » ESBF-BS-40-100-5P

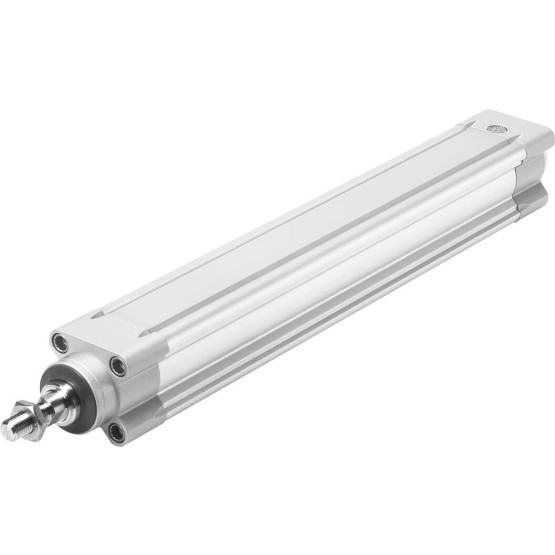

ESBF-BS-40-100-5P

$1,316.35

Electric Cylinder is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:Esbf-Bs-40-100-5P

FESTO Order Number:8022574

SKU: ESBF-BS-40-100-5P Category: Tag:

Description

size 40
Stroke [mm] 100
Piston rod thread M12x1,25
Reversing play [??m] 30
Spindle diameter [mm] 16
Spindle pitch [mm/U] 5,0
Max. twist angle of the piston rod ?I [deg] 0,20
Based on standard ISO 15552
installation position arbitrary
Piston rod end Male thread
Motor type Step motorServo motor
Position detection For proximity switch
Construction set up Electro-cylinder with ball screw thread
Spindle type Ball screw
Anti-twist lock / guide Slide guided
Max. acceleration [m/s2] 5,0
Max. speed [m/s] 0,420
Repeatability ?I0.01 mm
Power-on time 100 %
Corrosion resistant class KBK 2 – moderate corrosion stress
Bearing temperature [??C] -20 to 60
Food compatibility See expanded material information
Relative humidity 0 – 95 %
Protection category IP40
ambient temperature [??C] 0 to 60
Max. actuator torque [Nm] 3,0
Max. radial force on drive shaft [N] 130
Max. feed force Fx [N] 3.000
Empty run actuator torque [Nm] 0,20
Guideline payload, horizontal [KGM] 300
Guideline payload, vertical [KGM] 300
Mass inertia JH per metre stroke [kg/cm2] 0,4601
Mass inertia JL per kg usable load [kg/cm2] 0,00630
Mass inertia JO [kg/cm2] 0,05040
Moving mass at 0 mm stroke [g] 467
Weight supplement per 10 mm stroke [g] 47
Base weight at 0 mm stroke [g] 1.237
Supplement moved mass per 10 mm stroke [g] 26
Fastening type With female threador accessory
Interface code actuator D40
Material information LABS containing materials includedRoHs compliant
Cover material Aluminium wrought alloySmooth anodised
Piston rod material High-alloyed stainless steels
Screws material Steelzinc plating
Spindle nut material Roller bearing steel
Spindle material Roller bearing steel
Cylinder tube material Aluminium wrought alloySmooth anodised
