Home » Products » GRLA-3/8-QS-8-D

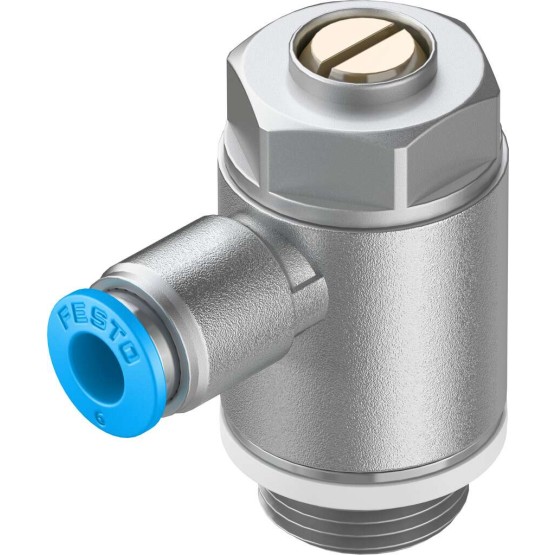

GRLA-3/8-QS-8-D

$31.71

One-Way Flow is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:GRLA-3/8-QS-8-D

FESTO Order Number:193150

SKU: GRLA-3/8-QS-8-D Category: Tag:

Description

Valve function Exhaust air flow control return function
Pneumatic connection 1 QS-8
Pneumatic connection 2 G3/8
Setting element slotted screw
Fastening type Screwable
Normal nominal flow in one-way flow control [l/min] 820
Normal nominal flow in check valve direction [l/min] 450 to 850
ambient temperature [??C] -10 to 60
Maritime classification see Certificate
installation position arbitrary
Normal flow In one-way flow control 6 -> 0 bar [l/min] 1300
Normal flow In check valve direction 6 -> 0 bar [l/min] 1080 to 1420
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Medium temperature [??C] -10 to 60
Product weight [g] 60,0
Stud material Aluminium wrought alloy
Material information RoHs compliant
Seals material NBR
Regulation screw material Brass
Swivel connection material ChromatisedZinc pressure cast
Operating pressure complete temperature range [bar] 0.2 to 10
Nominal tightening torque [Nm] 10,0
Tolerance to nominal tightening torque ?I 10 %
Sleeve material POM
