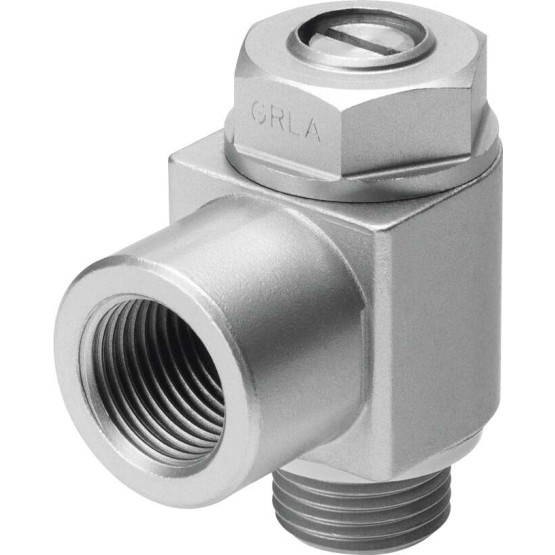

Description
Valve function Throttle blowback function
Pneumatic connection 1 QS-8
Pneumatic connection 2 G3/8
Setting element knurled screw
Fastening type ScrewableWith Male thread
Normal nominal flow in one-way flow control [l/min] 820
Normal nominal flow in check valve direction [l/min] 450 to 850
Operating pressure [bar] 0.2 to 10
ambient temperature [??C] -10 to 60
Maritime classification see Certificate
installation position arbitrary
Normal flow In one-way flow control 6 -> 0 bar [l/min] 1300
Normal flow In check valve direction 6 -> 0 bar [l/min] 1080 to 1420
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Medium temperature [??C] -10 to 60
Product weight [g] 72,0
Material information RoHs compliant
Seals material NBR
Regulation screw material High-alloyed stainless steels
Swivel connection material Zinc pressure cast
Operating pressure complete temperature range [bar] 0.2 to 10
Banjo bolt material Aluminium wrought alloyanodized
Bearing temperature [??C] -10 to 40
Nominal tightening torque [Nm] 10,0
Sleeve material POM
Knurled head material Aluminium wrought alloyanodized
