HGPP-20-A-G1

HGPP-20-A-G1

$1,497.75

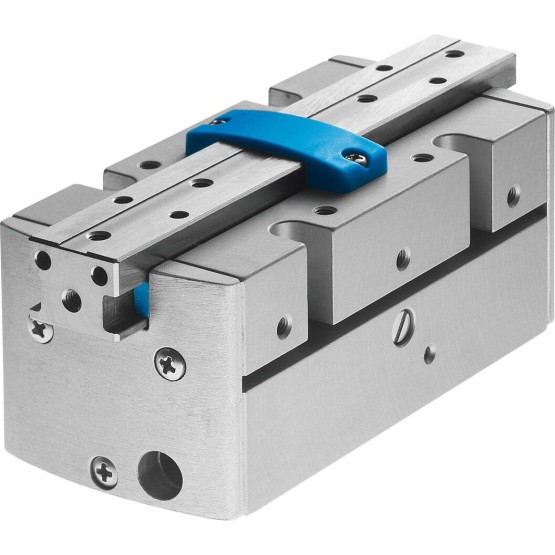

Parallel Gripper is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:HGPP-20-A-G1

FESTO Order Number:187874

SKU: HGPP-20-A-G1 Category: Tag:

Description

size 20
Stroke per gripper jaw [mm] 7,5
Max. exchange precision [mm] 0,1
Repeatability grippers [mm] <= 0,02 mm Quantity Gripper jaws 2 Principle of operation double acting Gripper function Parallel Construction set up Toothed rack/pinion Position detection For Hall sensorsFor inductive sensors Operating pressure [bar] 5 to 8 Max. working frequency gripper [Hz] 4 Min. opening time a 6 bar [ms] 45 Min. closing time at 6 bar [ms] 92 Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] Information about operating and control medium Oiled operation possible (required in further operations) Corrosion resistant class KBK 2 - moderate corrosion stress ambient temperature [??C] 5 to 60 Max. force on gripper jaws Fz static [N] 220 Max. torque on gripper jaws Mx static [Nm] 14,0 Max. torque on gripper jaws My static [Nm] 14,0 Max. torque on gripper jaws Mz static [Nm] 14,0 Max. mass per external griper finger [g] 200 Product weight [g] 611 Fastening type with female thread Pneumatic connection M5 Material information Copper and PTFE-free Cover cap material POM Housing material Aluminium wrought alloyHard anodised Gripper jaws material Aluminium wrought alloynickel-plated Gripping force safety When opening
