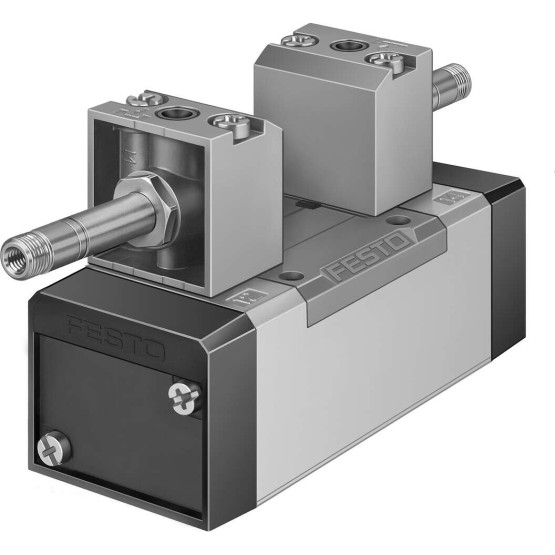

Description
Valve function 5/3 vented
Actuation type Electrical
Build.width [mm] 42
Normal nominal flow [l/min] 1.200
Operating pressure [bar] -0.9 to 16
Construction set up Piston pusher
Reset mode Mechanical spring
Protection category IP65
Nominal width [mm] 8,0
Pitch dimension [mm] 43
Exhaust function Can be throttled
Sealing principle Soft
installation position arbitrary
Complies to standard ISO 5599-1
Hand assist actuation With Accessories ratchetingtentative
ISO-Code 169
Control type pilot operated
Control air supply external
Flow direction Reversible
??berdeckung positive ??berdeckung
Shifting time off [ms] 36
Shifting time on [ms] 18
Max. positive test impulse at 0 signal [??s] 2.200
Max. negative test impulse for 1 signal [??s] 3.700
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Medium temperature [??C] -10 to 60
Sound level [dB(A)] 85
ambient temperature [??C] -5 to 40
Product weight [g] 520
Electrical connection Via f-coil, order separately
Fastening type on connection plateWith throughway bores
Pneumatic connection 1 Connection plate Size 1 to ISO 5599-1
Pneumatic connection 2 Connection plate Size 1 to ISO 5599-1
Pneumatic connection 3 Connection plate Size 1 to ISO 5599-1
Pneumatic connection 4 Connection plate Size 1 to ISO 5599-1
Pneumatic connection 5 Connection plate Size 1 to ISO 5599-1
Material information RoHs compliant
Seals material HNBRNBR
Housing material Aluminium die casting
Control pressure [bar] 3 to 10
control medium Compressed air to ISO 8573-1:2010 [7:4:4]
Control air 14 connection Connection plate Size 1 to ISO 5599-1
Control air 12 connection Connection plate Size 1 to ISO 5599-1
Maritime classification see Certificate
Oscillation strength Transport use test with severity level 1 to FN 942017-4 and EN 60068-2-6
Shock resistance Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
