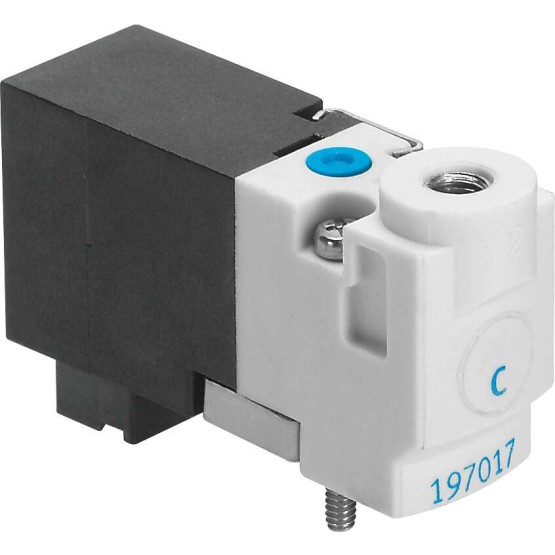

Description
Valve function 3/2 closed monostable
Actuation type Electrical
Build.width [mm] 10
Normal nominal flow [l/min] 10
Operating pressure [bar] 0 to 8
Construction set up Poppet valve with reset spring
Reset mode Mechanical spring
Protection category IP40
Permission c UL us – Recognized (OL)
Certified awarding point UL MH19482
Nominal width [mm] 0,65
Pitch dimension [mm] 10
Exhaust function Can be throttled
Sealing principle Soft
installation position arbitrary
Hand assist actuation tentative
Control type Direct
Flow direction Not reversible
Valve space – labelling Sign
??berdeckung negative ??berdeckung
Information about force dynamic sampling Switching frequency at least 1x per week
Max. switching frequency [Hz] 20
Shifting time off [ms] 4
Shifting time on [ms] 4
Power-on time 100 %
Electrical power consumption [W] 1,0
Coil characteristic value 24 V DC: 1 W
Permitted voltage oscillations ?I 10 %
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Oscillation strength Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistance Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistant class KBK 2 – moderate corrosion stress
Bearing temperature [??C] -20 to 60
Medium temperature [??C] -5 to 40
ambient temperature [??C] -5 to 40
Product weight [g] 10,0
Electrical connection Plug
Fastening type on connection plateWith throughway bores
Pneumatic connection 1 Connection plate
Pneumatic connection 2 M3
Pneumatic connection 3 Connection plate
Material information Copper and PTFE-freeRoHs compliant
Seals material FKMHNBRNBR
Housing material PA reinforcedPPS reinforced
Max. positive test impulse at 0 signal [??s] 500
Max. negative test impulse for 1 signal [??s] 400
