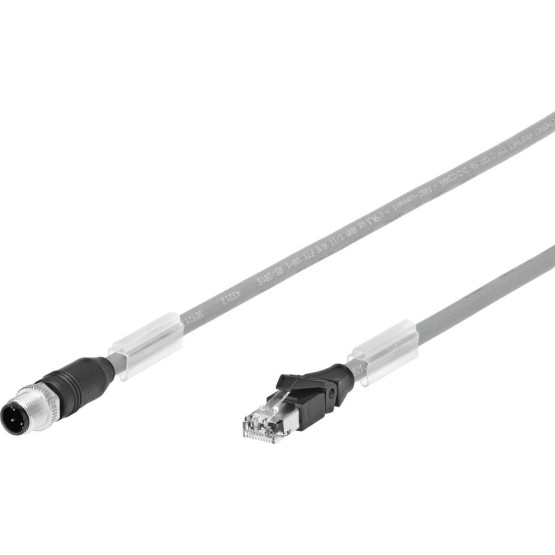

NEBC-D12G4-ES-10-S-D12G4-ET

$81.59

Connecting Cable is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:NEBC-D12G4-ES-10-S-D12G4-ET

FESTO Order Number:8040450

SKU: NEBC-D12G4-ES-10-S-D12G4-ET Category: Tag:

Description

Electrical connection 1 Plug straight, M12x1, 4 pin, D-coded
Electrical connection 2 Plug straight, M12x1, 4 pin, D-coded
Cable length [MTR] 10,00
Material information Copper and PTFE-freeRoHs compliant
Corrosion resistant class KBK 1 – low corrosion stress
Complies to standard EN 61076-2-101
Operating voltage range DC [V] 0 to 30
Line properties Cable track capable
Cable diameter [mm] 6,7
Cable set up 2x(2×0,34)
Conductor – nominal cross-section [mm2] 0,340
Protection category IP65IP67
ambient temperature [??C] -25 to 80
Ambient temperature for moving cable placements [??C] -20 to 60
Degree of contamination 3
Cable sleeve material TPE-U(PUR)
Cable shield colour green
Current carrying capacity at 40??C [A] 4,00
Special features Oil resistant
Housing material TPE-U(PUR)
Housing colour black
Plug contacts material brassGold plated
Insulation sleeve material PE
Surge voltage strength [kV] 0,8
Test conditions line Bending radius strength to Festo standardTest conditions on requestCable track: 2 million cycles, bending radius 100 mm
Min. cable bending radius [mm] 100
Transfer properties According to category 5 EN 50173, class DAccording to category 5, ISO/IEC 11801, class D
Ethernet cable specification Type: CAT.5
Threaded sleeve material Zinc pressure cast
