NEBC-M9W5-K-2-N-LE3

NEBC-M9W5-K-2-N-LE3

$77.96

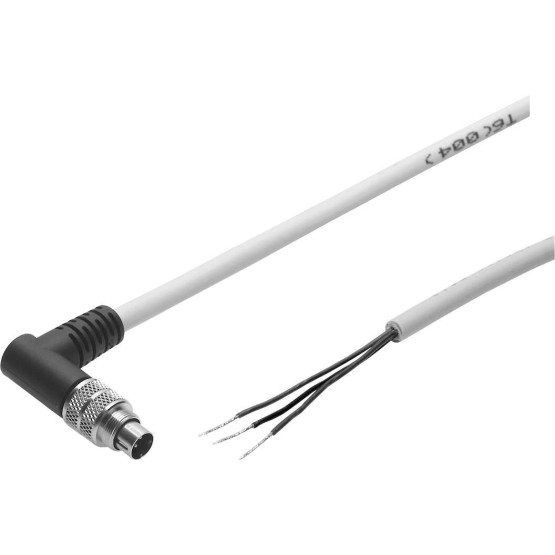

Connecting Cable is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:NEBC-M9W5-K-2-N-LE3

FESTO Order Number:563711

SKU: NEBC-M9W5-K-2-N-LE3 Category: Tag:

Description

Cable length [MTR] 2,00
Material information RoHs compliant
Corrosion resistant class KBK 1 – low corrosion stress
Line designation With Accessories
Electrical connection 1, function Field device screen
Electrical connection 1, connection type cable
Electrical connection 1, connection technology Open end
Electrical connection 1, number of pins / wires 5
Electrical connection 1, occupied pin / wire 3
Electrical connection 2, function Control screen
Electrical connection 2, connection type Plug
Electrical connection 2, connection technology M9x0,5
Electrical connection 2, number of pins / wires 5
Electrical connection 2, occupied pin / wire 3
Operating voltage range DC [V] 0 to 30
Line properties Cable track capable
Cable diameter [mm] 5,5
Cable set up 2×0,25+2×0,34+0,49Shielded
Conductor – nominal cross-section [mm2] 0,250,340,49
Wire ends Wire end sleeve
Protection category IP65IP67
Information about protection category In mounted condition
ambient temperature [??C] -20 to 80
Ambient temperature for moving cable placements [??C] -5 to 80
Degree of contamination 1
Cable sleeve material TPE-U(PUR)
Cable shield colour Light grey
Product weight [g] 108,0
Current carrying capacity at 40??C [A] 1,60
Bending radius, moving cable placement [mm] >= 75 mm
Housing material PAPBTTPE-U(PUR)
Housing colour black
Plug contacts material Bronze gold-platedBrass, gold-plated
Insulation sleeve material TPE-U(PUR)
Surge voltage strength [kV] 0,5
Test conditions line Test conditions on request
Electrical connection 2, design round
Electrical connection 2, cable output Angled
Electrical connection 2, fastening type Screw lock
Information about current load rating at 40 ??C 2.3 A for 0,34 mm23.6 A for 0,49 mm2
Screw lock material brass, nickel-plated
