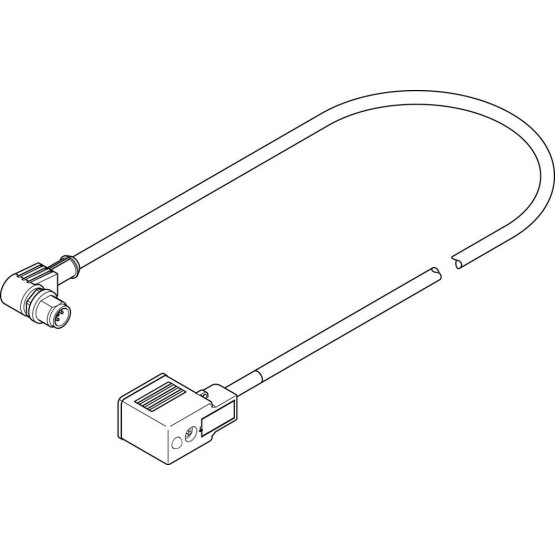

Description
Permission c CSA us (OL)
Line designation Without sign holder
Product weight [g] 100
Electrical connection 1, function Field device screen
Electrical connection 1, design Angular
Electrical connection 1, connection type socket / container / ??.
Electrical connection 1, cable output Angled
Electrical connection 1, connection technology Wiring diagram shape A based on EN 175301-803
Electrical connection 1, number of pins / wires 4
Electrical connection 1, occupied pin / wire 4
Electrical connection 1, fastening type on solenoid valve with central screw M3
Electrical connection 2, function Control screen
Electrical connection 2, design round
Electrical connection 2, connection type Plug
Electrical connection 2, cable output Angled
Electrical connection 2, connection technology M12x1 A coded to EN 61076-2-101
Electrical connection 2, number of pins / wires 5
Electrical connection 2, occupied pin / wire 3
Electrical connection 2, fastening type Screw lock with hexagonal SW13
Operating voltage range DC [V] 0 to 110
Nominal operating voltage DC [V] 110
Operating voltage range AC [V] 0 to 110
Nominal operating voltage AC [V] 110
Current carrying capacity at 40??C [A] 1
Surge voltage strength [kV] 1,5
Protection line connection Available
Cable length [MTR] 0,6
Line properties Standard
Test conditions line Test conditions on request
Cable diameter [mm] 5,9
Tolerance cable diameter ?I 0,3 mm
Cable set up 3×0,75
Protection category IP67
Information about protection category In mounted condition
ambient temperature [??C] -25 to 80
Ambient temperature for moving cable placements [??C] -25 to 80
CE certificate (see declaration of conformity) acc. to EU Low voltage Directiveacc. to EU-RoHS Directive
Material information LABS containing materials includedRoHs compliant
Degree of contamination 3
Corrosion resistant class KBK 2 – moderate corrosion stress
Cable sleeve material TPE-U(PUR)
Cable shield colour Grey
Housing material TPE-U(PUR)
Housing colour black
Locking nut material nickel-platedZinc pressure cast
Insulation sleeve material PP
