QS-1/8-8-I-50

$2.45

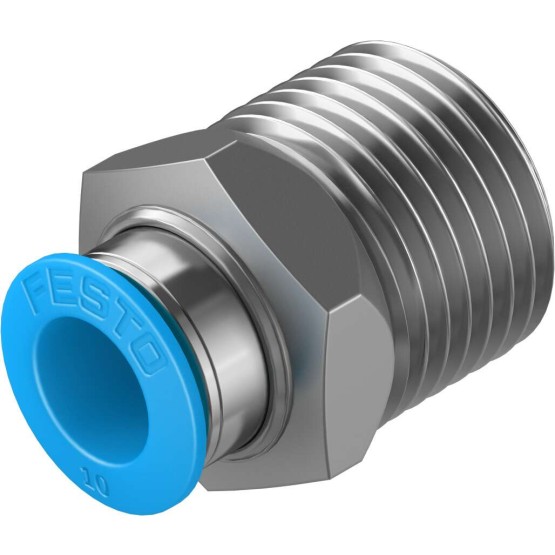

Push-In Fitting is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:QS-1/8-8-I-50

FESTO Order Number:133187

SKU: QS-1/8-8-I-50 Category: Tag:

Description

size Standard
Nominal width [mm] 5,3
Seal type on stud coating
installation position arbitrary
Packing size 50
Construction set up Push-pull principle
Operating pressure complete temperature range [bar] -0.95 to 6
Temperature depending operating pressure [bar] -0.95 to 14
Maritime classification see Certificate
Corrosion resistant class KBK 1 – low corrosion stress
ambient temperature [??C] -10 to 80
Product weight [g] 8,8
Pneumatic connection 1 Male thread R1/8
Pneumatic connection 2 For hose exterior diameter 8 mm
Sleeve colour blue
Material information RoHs compliant
Housing material brassnickel-plated
Sleeve material POM
Tube seal, hose seal material NBR
Hose clamping segment material High-alloyed stainless steels
