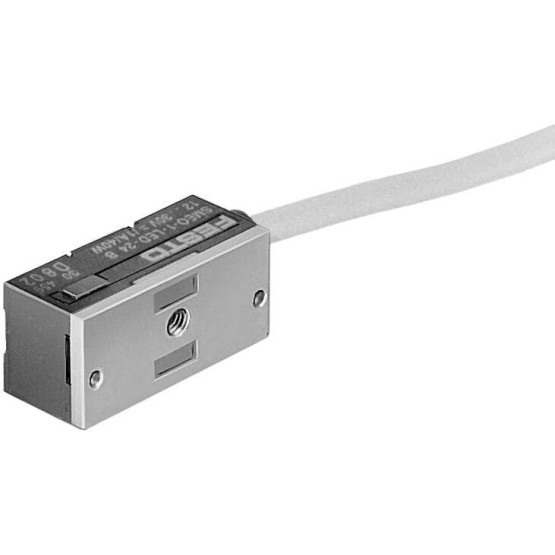

SMEO-1-LED-230-K5-B

SMEO-1-LED-230-K5-B

$145.59

Proximity Sensor is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:SMEO-1-LED-230-K5-B

FESTO Order Number:160998

SKU: SMEO-1-LED-230-K5-B Category: Tag:

Description

Design Block structure
Material information Copper and PTFE-free
Measurement principle Reed magnetic
ambient temperature [??C] -20 to 70
Control output Bipolar contact
Switching element function NO contact
Reproducibility of the switching value ?I 0,1 mm
Switch on time [ms] 0,5
Max. switching capacity AC [VA] 40
Max. switching capacity DC [W] 40
Short circuit resistance no
Overload resistant Not available
Operating voltage range DC [V] 5 to 200
Reverse polarity protection no
Electrical connection 2-wirecable
Fastening type With Accessories
Product weight [g] 130
Housing material PCPETTPE-OSteelZinc pressure castEpoxy resin
Ambient temperature for moving cable placements [??C] -5 to 70
Protection category IP67
Permission RCM mark
CE certificate (see declaration of conformity) to EU EMC directiveto EU low voltage directive
Operating voltage range AC [V] 5 to 250
Switching status indicator LED yellow
Complies to standard EN 60947-5-2
Switch off time [ms] 0,03
Max. switching frequency [Hz] 500
Max. output current AC [mA] 250
Max. output current DC [mA] 120
Voltage drop [V] <= 4,5 V Residual current [mA] 0 Connection outlet direction along Cable length [MTR] 5,0 Cable sleeve material PVC Torque [Nm] 2,9 Surge voltage strength [kV] 4 Degree of contamination 3
