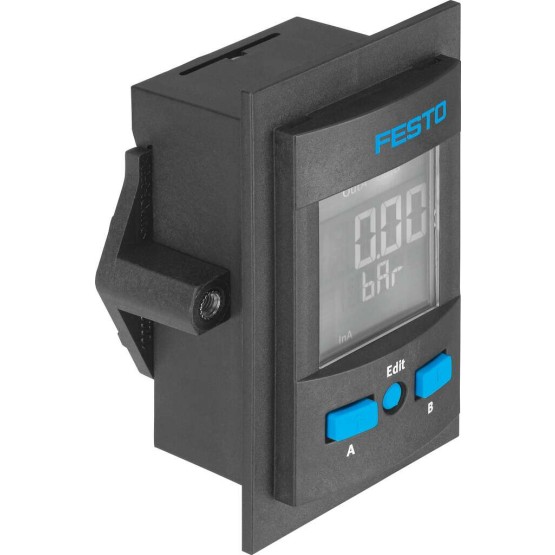

Description
Permission RCM markc UL us – Listed (OL)
CE certificate (see declaration of conformity) acc. to EU-EMV Directiveacc. to EU-RoHS Directive
KC-mark KC-EMV
Material information RoHs compliant
Measured parameter Relative pressure
Measurement process Piezoresistive pressure sensor
Pressure measurement range starting value [bar] 0
Pressure measurement range end value [bar] 10
Overload range [bar] 15
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]Inert gases
Information about operating and control medium Oiled operation possible
Medium temperature [??C] 0 to 50
ambient temperature [??C] 0 to 50
Resolution analogue-digital converter [Bit] 12
Accuracy FS [%FS] 1,5
Repeatability in ?I %FS [%FS] 0,3
Temperature coefficient in ?I %FS/K [%FS/K] 0,05
Control output 2 x PNP or 2 x NPN switchable
Switch function Freely programmable
Switching element function Opener/closer switchable
Max. output current [mA] 100
Analogue output 0 – 10 V4 – 20 mA1 – 5 V
Rise time [ms] 3
Max. load resistance current output [Ohm] 500
Min. load resistance voltage output [kOhm] 10
Short circuit resistance yes
Report IO-Link
IO-Link, report Device V 1.1
IO-Link, profile Smart sensor profile
IO-Link, function classes Teach channelDiagnosisIdentificationBinary data channel (BDC)Process data variables (PDV)
IO-Link, communication mode COM2 (38.4 kBaud)
IO-Link, SIO mode support yes
IO-Link, port type A
IO-Link, process data width OUT 0 Bytes
IO-Link, process data width IN 2 Bytes
IO-Link, process data contents IN 14 bit PDV (pressure measurement)2 bit BDC (pressure monitoring)
IO-Link, minimum cycle time 3 ms
IO-Link, data memory needed [Byte] 500
Operating voltage range DC [V] 20 to 30
Reverse polarity protection for all electrical connections
Electrical connection 1, connection type Plug
Electrical connection 1, connection technology M12x1 A coded to EN 61076-2-101
Electrical connection 1, number of pins / wires 4
Fastening type Front panel integration
installation position arbitrary
Pneumatic connection QS-5/32
Product weight [g] 70
Display type Illuminating LCD
Presentable unit(s) inchH2OinchHgkPakgf/cm2mmHgpsibarMPa
Setting options IO-LinkTeach-In??ber Display und Tasten
Tamper-proof fuse IO-LinkPIN code
Settings range threshold value [%] 0 to 100
Settings range hysteresis [%] 0 to 90
Protection category IP65IP67
Corrosion resistant class KBK 2 – moderate corrosion stress
