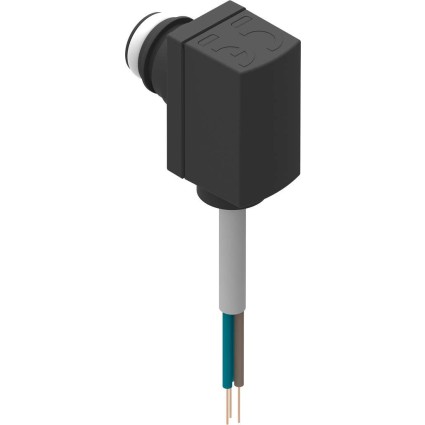

SPTE-B2R-PC10-V-2.5K

$64.34

Pressure Transmitter is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:SPTE-B2R-PC10-V-2.5K

FESTO Order Number:8025976

SKU: SPTE-B2R-PC10-V-2.5K Category: Tag:

Description

Permission RCM markc UL us – Recognized (OL)
CE certificate (see declaration of conformity) acc. to EU-EMV Directiveacc. to EU-RoHS Directive
KC-mark KC-EMV
Material information RoHs compliant
Measured parameter Relative pressure
Measurement process Piezoresistive pressure sensor
Pressure measurement range starting value [bar] -1
Pressure measurement range end value [bar] 1
Overload range [bar] 5
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible
Medium temperature [??C] 0 to 50
ambient temperature [??C] 0 to 50
Accuracy FS [%FS] 3
Repeatability in ?I %FS [%FS] 0,3
Temperature coefficient in ?I %FS/K [%FS/K] 0,05
Analogue output 0 – 10 V
Rise time [ms] 1
Min. load resistance voltage output [kOhm] 15
Short circuit resistance for all electrical connections
Operating voltage range DC [V] 18 to 30
Reverse polarity protection for all electrical connections
Electrical connection 3-wirecableOpen end
Cable length [MTR] 2,5
Fastening type Pin-type connection
installation position arbitrary
Pneumatic connection Cartridge 10 mm
Product weight [g] 35
Housing material PA reinforced
Gasket material NBR
Protection category IP40
Corrosion resistant class KBK 2 – moderate corrosion stress
