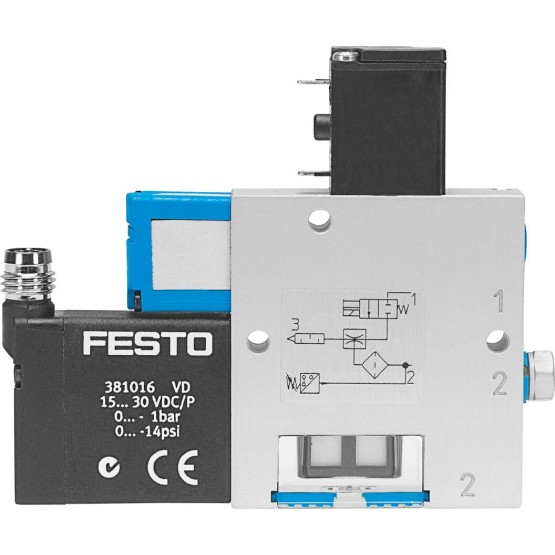

VADM-95-N

VADM-95-N

$679.92

Vacuum Generator is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:VADM-95-N

FESTO Order Number:162517

SKU: VADM-95-N Category: Tag:

Description

Nominal width laval nozzle [mm] 0,95
Pitch dimension [mm] 18
Construction type silencer type closed
installation position arbitrary
Ejector characteristic High vacuum
Filter porosity [??m] <= 40 ??m Hand assist actuation tentative Integrated function check valvesvacuum switchElectrical switch on valveEjection impulse electricalflow control valve (both directions)filter Valve function closed Operating pressure [bar] 2 to 8 max. vacuum [%] 85 Nominal operating pressure [bar] 6 Venting time for nominal operating pressure [s] 1,18 Operating voltage range DC [V] 21.6 to 26.4 Power-on time 100 % Permission RCM markc UL us - Recognized (OL) Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] Information about operating and control medium Oiled operation not possible Corrosion resistant class KBK 2 - moderate corrosion stress Medium temperature [??C] 0 to 60 Protection category IP65 ambient temperature [??C] 0 to 50 Product weight [g] 220 Electrical connection M8x14 pinPlug Fastening type With throughway boresWith female threadSelectively: Pneumatic connection 1 G1/8 Pneumatic connection 3 Silencer integrated vacuum connection G1/8 Material information Copper and PTFE-freeRoHs compliant Seals material NBR Capture nozzle material Nickel-plated brass Filter material PA Filter housing material PC Housing material Aluminium wrought alloy Silencer material PEPOM Piston material POM Jet nozzle material Nickel-plated brass Measured parameter Relative pressure Measurement principle Piezoresistive Switching element function NO contact Switch function Threshold comparator Reverse polarity protection for all electrical connections Display type LED Settings range hysteresis [bar] [bar] -0.5 to -0.05 Setting options Potentiometer Switching status indicator Visual Settings range threshold value [bar] -0,9 Control output NPN CE certificate (see declaration of conformity) to EU EMC directive Pressure measurement range [bar] 0 to 1
