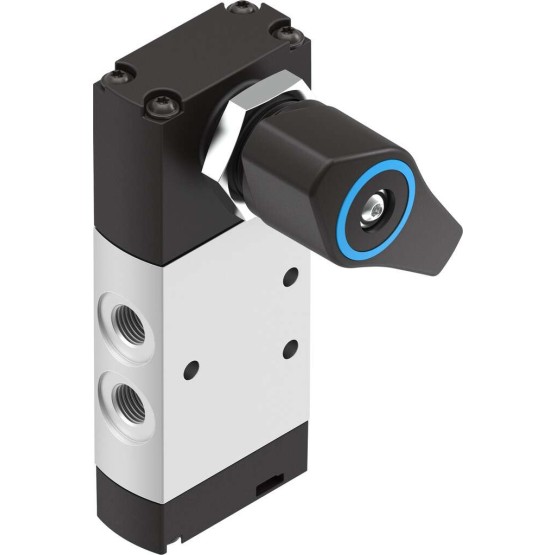

VHEF-EST-M32-M-G18

$84.78

Selector Valve is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:VHEF-EST-M32-M-G18

FESTO Order Number:4106806

SKU: VHEF-EST-M32-M-G18 Category: Tag:

Description

Valve function 3/2 open/closed monostable
Actuation type Manually
Build.width [mm] 20
Normal nominal flow [l/min] 750
Betriebsdruck Mpa [MPa] -0,095 bis 1
Operating pressure [bar] -0.95 to 10
Construction set up Plate seat
Reset mode Mechanical spring
Nominal width [mm] 5,6
Exhaust function Can be throttled
User information Only actuate by hand
Sealing principle Soft
installation position arbitrary
Control type Direct
Flow direction Reversible
??berdeckung Null??berdeckung
Max. switching frequency [Hz] 0,5
Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 1 – low corrosion stress
Medium temperature [??C] -10 to 60
ambient temperature [??C] -10 to 60
Actuation torque [Nm] 0,4
Max. force on actuation [N] 200
Max. cross-force on actuation [N] 200
Product weight [g] 206
Fastening type Front panel integrationWith throughway boresSelectively:
Pneumatic connection 1 G1/8
Pneumatic connection 2 G1/8
Pneumatic connection 3 G1/8
Material information RoHs compliant
Cover material PA reinforced
Seals material NBR
Housing material Aluminium wrought alloy, anodised
Lever material PA reinforced
