Home » Products » VMEF-R-M52-M-G14

VMEF-R-M52-M-G14

$180.01

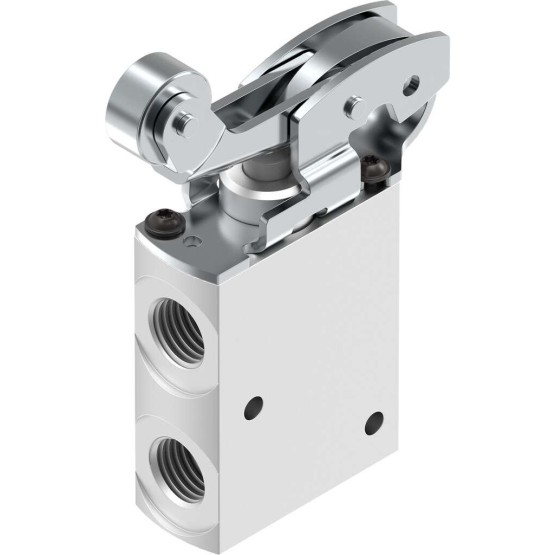

Roller Lever is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:VMEF-R-M52-M-G14

FESTO Order Number:8047094

SKU: VMEF-R-M52-M-G14 Category: Tag:

Description

Valve function 5/2 monostable
Actuation type Mechanical
Build.width [mm] 20
Normal nominal flow [l/min] 1.200
Betriebsdruck Mpa [MPa] -0,095 bis 1
Operating pressure [bar] -0.95 to 10
Construction set up Piston pusherRoller lever
Reset mode Mechanical spring
Nominal width [mm] 7,0
User information Risk of trapping
Sealing principle Soft
installation position arbitrary
Control type Direct
Flow direction Reversible
??berdeckung positive ??berdeckung
Max. switching frequency [Hz] 3
Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 1 – low corrosion stress
Medium temperature [??C] -10 to 60
ambient temperature [??C] -10 to 60
actuating force [N] 38,0
Product weight [g] 272
Fastening type With throughway bores
Pneumatic connection 1 G1/4
Pneumatic connection 2 G1/4
Pneumatic connection 3 G1/4
Material information RoHs compliant
Seals material NBR
Housing material Aluminium wrought alloy, anodised
Pneumatic connection 4 G1/4
Pneumatic connection 5 G1/4
Cover material PA reinforced
Max. stroke limit (hard) [mm] 11,6
Max. actuation speed for side actuation [m/s] 1,4
Cam angle [deg] 30
Information about ambient temperature Heat influence on wear
Actuation attachment material Zinc plated steel
