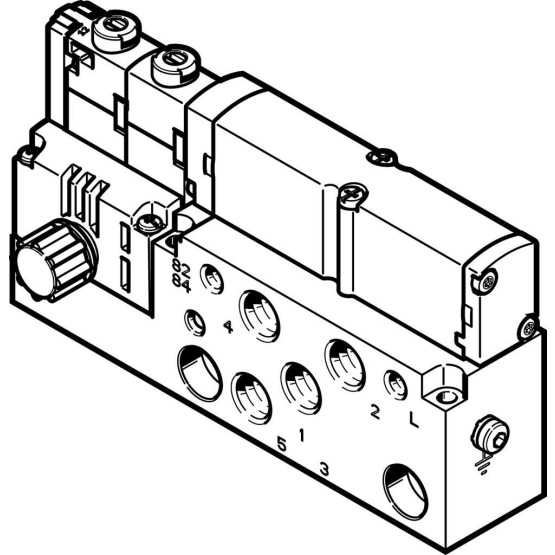

VMPA14-M1H-HS-S-G1/8-PI

$257.25

Solenoid Valve is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:VMPA14-M1H-HS-S-G1/8-PI

FESTO Order Number:8023575

SKU: VMPA14-M1H-HS-S-G1/8-PI Category: Tag:

Description

Valve function 2×3/2 open/closed monostable
Actuation type Electrical
Valve size [mm] 14
Normal nominal flow [l/min] 460
Operating pressure [bar] -0.9 to 8
Construction set up Piston pusher
Reset mode Mechanical spring
Permission c CSA us (OL)c UL us – Recognized (OL)
CE certificate (see declaration of conformity) to EU EMC directive
Protection category IP65acc. to IEC 60529
Exhaust function Can be throttled
Sealing principle Soft
installation position arbitrary
Hand assist actuation Ratchetingtentative
Control type pilot operated
Control air supply external
Flow direction Reversible
??berdeckung positive ??berdeckung
Signal condition display yes
Control pressure [bar] 3 to 8
Vacuum capable yes
Shifting time off [ms] 25
Shifting time on [ms] 10
Max. positive test impulse at 0 signal [??s] 400
Max. negative test impulse for 1 signal [??s] 200
Permitted voltage oscillations ?I 25 %
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Oscillation strength Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistance Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistant class KBK 1 – low corrosion stress
Bearing temperature [??C] -20 to 40
Medium temperature [??C] -5 to 50
Relative humidity max. 90 % at 40 ??C
ambient temperature [??C] -5 to 50
Max. tightening torque Valve fastening [Nm] 0,65
Product weight [g] 255
Electrical connection M8x14 pinacc. to EN 60947-5-2Plug
Fastening type With throughway bores
Pneumatic connection 1 G1/8
Pneumatic connection 2 G1/8
Pneumatic connection 3 G1/8
Pneumatic connection 4 G1/8
Pneumatic connection 5 G1/8
Material information RoHs compliant
Seals material NBR
Housing material Aluminium die casting
Support air control connection 12/14 M5
Exhaust control connection 82/84 M5
Normal nominal flow with QS-8 [l/min] 550
