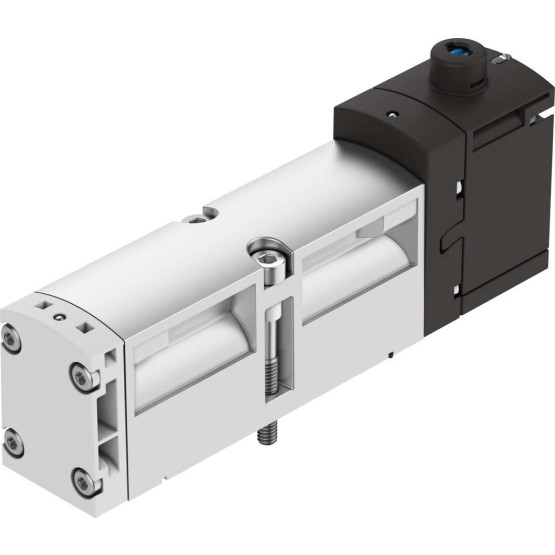

VSVA-B-B52-ZTR-A1-1T1L

$183.30

Solenoid Valve is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:VSVA-B-B52-ZTR-A1-1T1L

FESTO Order Number:8033019

SKU: VSVA-B-B52-ZTR-A1-1T1L Category: Tag:

Description

Valve function 5/2 bistable
Actuation type Electrical
Build.width [mm] 26
Normal nominal flow [l/min] 1.100
Operating pressure [bar] -0.9 to 10
Construction set up Piston pusher
Permission CSA (OL)c UL us – Recognized (OL)
Protection category IP65NEMA 4
Exhaust function drosselbar??ber Drosselplatte??ber Einzelanschlussplatte
Sealing principle Soft
installation position arbitrary
Hand assist actuation With Accessories ratchetingtentative
Control type pilot operated
Control air supply externalInternal
Flow direction arbitrary
??berdeckung positive ??berdeckung
Signal condition display LED
Control pressure [bar] 3 to 10
Flow valve [l/min] 1.400
Flow valve single connection plate [l/min] 1.200
Flow valve pneumatically linked flow optimised [l/min] 1.350
Flow valve pneumatically linked [l/min] 1.100
Power-on time 100 %
Max. positive test impulse at 0 signal [??s] 1.200
Max. negative test impulse for 1 signal [??s] 1.100
Nominal operating voltage DC [V] 24
Coil characteristic value 24 V DC: 1,6 W
Surge voltage strength [kV] 2,5
Degree of contamination 3
Permitted voltage oscillations ?I 10 %
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Oscillation strength Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistance Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistant class KBK 0 – No corrosion stressing
Relative humidity 0 – 90 %
control medium Compressed air to ISO 8573-1:2010 [7:4:4]
ambient temperature [??C] -5 to 50
Product weight [g] 276
Electrical connection Plug-into ISO 15407-2
Fastening type on connection plate
Support air control connection 12/14 Connection plate Size 26 mm to ISO 15407-2
Exhaust control connection 82/84 Selectively:RecordedNot recorded to standard
Pneumatic connection 1 Connection plate Size 26 mm to ISO 15407-2
Pneumatic connection 2 Connection plate Size 26 mm to ISO 15407-2
Pneumatic connection 3 Connection plate Size 26 mm to ISO 15407-2
Pneumatic connection 4 Connection plate Size 26 mm to ISO 15407-2
Pneumatic connection 5 Connection plate Size 26 mm to ISO 15407-2
Material information RoHs compliant
Seals material FKMHNBRNBR
Housing material PAAluminium die casting
Screws material Zinc-plated steel
Shifting time um [ms] 18
