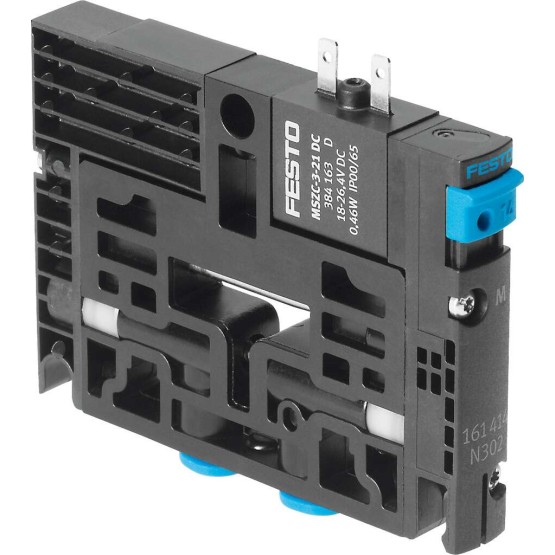

Description
Valve function 2×3/2 closed monostable
Actuation type Electrical
Valve size [mm] 26
Normal nominal flow [l/min] 900
Operating pressure [bar] 2 to 10
Construction set up Piston pusher
Reset mode Pneumatic spring
Permission c UL us – Recognized (OL)
Protection category IP65NEMA 4
Nominal width [mm] 9
Exhaust function Can be throttled
Sealing principle Soft
installation position arbitrary
Complies to standard ISO 15407-1VDMA 24563
Control type pilot operated
Control air supply Internal
Flow direction Not reversible
??berdeckung positive ??berdeckung
Signal condition display LED
Flow valve [l/min] 1.250
Flow valve single connection plate [l/min] 1.000
Flow valve pneumatically linked [l/min] 900
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Oscillation strength Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistance Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistant class KBK 0 – No corrosion stressing
Medium temperature [??C] -5 to 50
Relative humidity 0 – 90 %
Sound level [dB(A)] 85
control medium Compressed air to ISO 8573-1:2010 [7:4:4]
ambient temperature [??C] -5 to 50
Max. tightening torque Valve fastening [Nm] 1.8 to 2.2
Product weight [g] 229
Fastening type on connection plate
Support air control connection 12 Connection plate Size 26 mm to ISO 15407-1
Support air control connection 14 Connection plate Size 26 mm to ISO 15407-1
Exhaust control connection 82/84 RecordedNot recorded to standard
Pneumatic connection 1 Connection plate Size 26 mm to ISO 15407-1
Pneumatic connection 2 Connection plate Size 26 mm to ISO 15407-1
Pneumatic connection 3 Connection plate Size 26 mm to ISO 15407-1
Pneumatic connection 4 Connection plate Size 26 mm to ISO 15407-1
Pneumatic connection 5 Connection plate Size 26 mm to ISO 15407-1
Pre-control interface acc. to ISO 15218
Material information RoHs compliant
Seals material HNBRNBR
Housing material Aluminium die casting
Screws material Steelzinc plating
