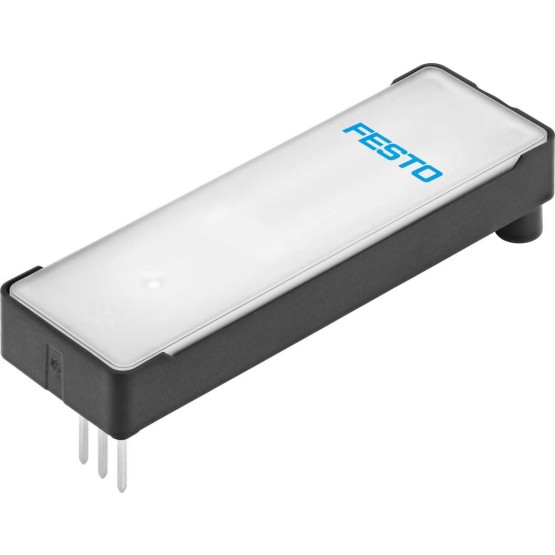

VTOE-8-D8-T3-M22C-08-F-P-P-M

Description

Valve function 2/2 closed monostable
Betriebsdruck Mpa [MPa] 0 bis 0,05
Operating pressure [bar] 0 to 0.5
Operating pressure [psi] [psi] 0 bis 7,25
Innenvolumen 113 ??l Ventil mit fluidischen Anschl??ssen
Nominal width [mm] 0,8
Dispensing needle nominal width [mm] 0,60
L?nge Dosiernadel [mm] 30
Pitch dimension [mm] 9
Sealing principle Soft
installation position arbitrary
Reset mode Mechanical spring
Control type Direct
Durchfluss Wasser bei max. Betriebsdruck 1300 ??l/s
Min. Dosiervolumen [??l] 3
Hinweis zum Dosiervolumen Abh?ngig von Konfiguration, Umfeld und Applikation
Typische Dosierpr?zision <1% CV f??r Volumina >5 ??l<2,5% CV f??r Volumina zwischen 1-5 ??l Hinweis zur Dosierpr?zision Abh?ngig von Konfiguration, Umfeld und Applikation Max. switching frequency [Hz] 4 Hinweis zur Schaltfrequenz abh?ngig von Umgebungstemperatur und Einbauzustand Shifting time on [ms] 7 Hinweis zur Schaltzeit ein Abh?ngig von Konfiguration, Umfeld und Applikation Shifting time off [ms] 2 Hinweis zur Schaltzeit aus Abh?ngig von Konfiguration, Umfeld und Applikation Power-on time 100 % Electrical power consumption [W] 1,8 Nominal operating voltage DC [V] 24 Permitted voltage oscillations ?I 10 % medium Fl??ssige Medien Hinweis zum Medium Pay attention to the resistance of the materials in contact with media User information Siehe Applikation note (verf??gbar im support portal festo.com) Oscillation strength Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6 Shock resistance Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 Corrosion resistant class KBK 0 - No corrosion stressing Bearing temperature [??C] -20 to 70 Medium temperature [??C] 5 to 50 Protection category IP30 Information about protection category In mounted condition ambient temperature [??C] 5 to 40 Product weight [g] 220 Electrical connection Sub-D9 pinPlug Fastening type Optionally:with throughway for bolt M3with female threads and centring sleeve Fluid connection 8x UNF1/4-28 Information on fluid connection Fitting for hoses with 3 mm outside diameter included Dispensing needle material High-alloyed stainless steels Dispensing needle material number 1.4301 Material information LABS containing materials includedRoHs compliant From medium contacting materials ETFEFFPMPEEKhochlegierter Stahl rostfrei Actuation type Electrical Nominal usage height above normal null <= 2000 m NHN Relative humidity 0 - 95 %Not condensing Degree of contamination 2 Information about power consumption Data per valve
