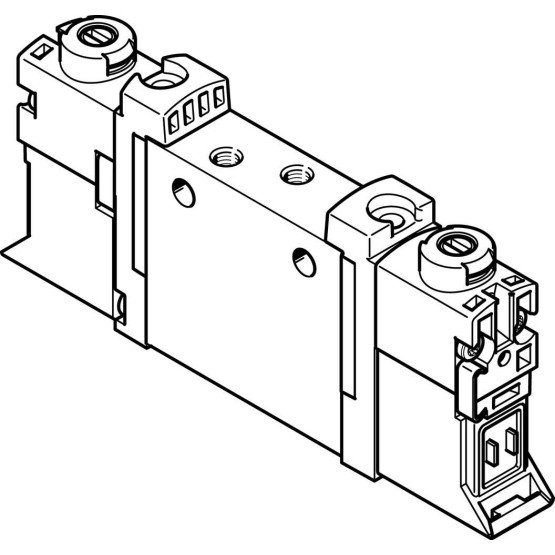

VUVG-B14-T32U-MZT-F-1P3

VUVG-B14-T32U-MZT-F-1P3

$131.57

Solenoid Valve is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:VUVG-B14-T32U-MZT-F-1P3

FESTO Order Number:574377

SKU: VUVG-B14-T32U-MZT-F-1P3 Category: Tag:

Description

Valve function 2×3/2 open monostable
Actuation type Electrical
Valve size [mm] 14
Normal nominal flow [l/min] 410 to 450
Operating pressure [bar] -0.9 to 10
Construction set up Piston pusher
Reset mode Mechanical spring
Permission RCM markc CSA us (OL)c UL us – Recognized (OL)
Protection category IP40IP65With Socket
Nominal width [mm] 4,3
Exhaust function Can be throttled
Sealing principle Soft
installation position arbitrary
Hand assist actuation RatchetingCoveredtentative
Control type pilot operated
Control air supply external
??berdeckung positive ??berdeckung
Control pressure [bar] 3 to 8
Vacuum capable yes
Shifting time off [ms] 11
Shifting time on [ms] 15
Power-on time 100 %
Max. positive test impulse at 0 signal [??s] 700
Max. negative test impulse for 1 signal [??s] 900
Coil characteristic value 24 V DC: Low current phase 0.3 W, high current phase 1,0 W24 V DC: 1 W
Permitted voltage oscillations ?I 10 %
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Oscillation strength Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Limits ambient and media temperature -5 – 50 ??CWithout holding current reduction
Shock resistance Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistant class KBK 2 – moderate corrosion stress
Medium temperature [??C] -5 to 60
ambient temperature [??C] -5 to 60
Product weight [g] 80
Electrical connection Via electrical connection plate
Fastening type on terminal strip
Material information RoHs compliant
Seals material HNBRNBR
Housing material Aluminium wrought alloy
control medium Compressed air to ISO 8573-1:2010 [7:4:4]
