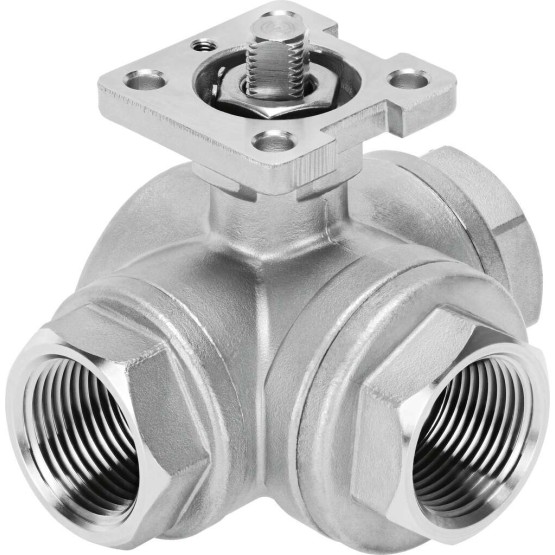

VZBE-1/2-T-63-F-3L-F04-V15V15

$151.59

Ball Valve is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:VZBE-1/2-T-63-F-3L-F04-V15V15

FESTO Order Number:4834290

SKU: VZBE-1/2-T-63-F-3L-F04-V15V15 Category: Tag:

Description

Construction set up 3-way ball valveL-borehole
Actuation type Mechanical
Sealing principle Soft
installation position arbitrary
Fastening type pipe installation
Fitting connection 1/2 NPT
Switching position display Carriage direction = flow direction
Inside diameter [mm] 12,7
Nominal width DN 15
Valve function 3/2
Flow direction Reversible
Nominal pressure fitting 63
Break-out torque at a pressure difference nominal fitting pressure PN [Nm] 9,6
Based on standard ASME B1.20.1ISO 5211
medium Compressed air acc. to ISO8573-1:2010 [-:-:-]Inert gassesNeutral liquidsWaterSteam
Medium temperature [??C] -20 to 200
Material information LABS containing materials includedRoHs compliant
Housing material Cast stainless steel
Material number housing 1.4408
Seat seal material PTFE
Seals material PTFE
Ball material Cast stainless steel
Material number ball 1.4408
Shaft material High-alloyed stainless steels
Material number shaft 1.4401
Product weight [g] 624
Permission CRN
Corrosion resistant class KBK 4 – particularly severe corrosion stress
Flange drilling screen F04
Flow Kv L-borehole [m3/h] 2,5
