Home » Products » VZBM-2-RP-25-F-3T-F05-B2B3

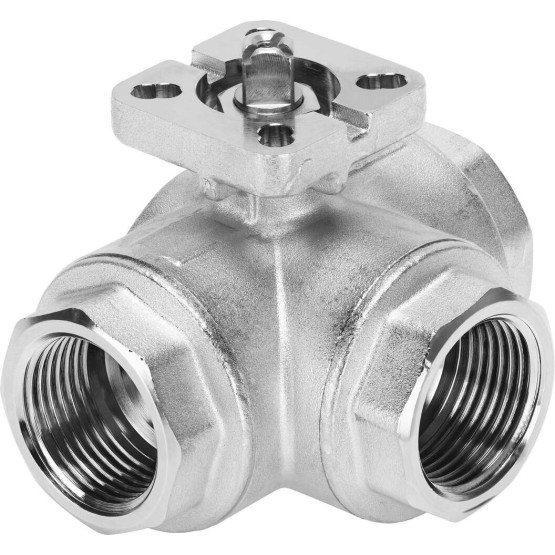

VZBM-2-RP-25-F-3T-F05-B2B3

$384.17

Ball Valve is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:VZBM-2-RP-25-F-3T-F05-B2B3

FESTO Order Number:4451860

SKU: VZBM-2-RP-25-F-3T-F05-B2B3 Category: Tag:

Description

Construction set up 3-way ball valveT-borehole
Actuation type Mechanical
Sealing principle Soft
installation position arbitrary
Fastening type pipe installation
Fitting connection Rp2
Switching position display Carriage direction = flow direction
Flange drilling screen F05
Inside diameter [mm] 45,0
Nominal width DN 50
Valve function 3/2
Flow direction Reversible
Nominal pressure fitting 25
Break-out torque at a pressure difference nominal fitting pressure PN [Nm] 36,0
Based on standard ISO 5211EN 10226-1
medium Compressed air to ISO8573-1:2010 [-:-:-]Inert gasesNeutral liquidsWater – no steam
Medium temperature [??C] -20 to 130
Material information LABS containing materials includedRoHs compliant
Housing material brassnickel-plated
Material number housing CW617N
Seals material HNBRPTFE
Ball material brassChrome plated
Material number ball CW614N
Shaft material Brass
Material number shaft CW614N
Product weight [g] 4.320
CE certificate (see declaration of conformity) to EU pressure vessel directive
Corrosion resistant class KBK 1 – low corrosion stress
Flow Kv T-hole corner [m3/h] 292,0
