Description
Product Overview

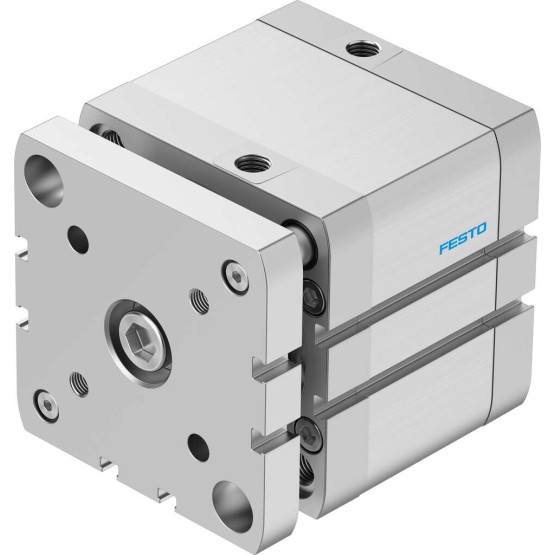

The FESTO ADNGF-80-40-PPS-A (Part #574063) is a Guided Compact Cylinder within the ADNGF series. Designed for double-acting operation, this product is fully compliant with ISO 21287 standards. Manufactured by FESTO — a global leader in automation technology — this component delivers the precision, reliability, and long service life that industrial applications demand.
Key Features
- Integrated guide rods and yoke plate provide excellent anti-twist protection and side load resistance
- Plain-bearing guide delivers significantly higher load capacity for pick-and-place tasks
- Builds on the compact ADN platform with added precision guidance capability
- Built-in magnetic piston supports non-contact position sensing via proximity switches
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 574063 |
| Model | ADNGF-80-40-PPS-A |
| Series | ADNGF |
| Product Type | Guided Compact Cylinder |
| Bore Diameter | 80 mm |
| Stroke Length | 40 mm |
| Operating Mode | double-acting |
| Standard | ISO 21287 |
| Body Material | Wrought aluminum alloy, smooth-anodized |
| Rod Material | High-alloy steel |
| Seal Material | TPE-U (PUR) |
| Corrosion Resistance | CRC 2 |
| Brand | FESTO |
Applications
This component is widely used in assembly equipment, welding fixtures, and other applications requiring twist-resistant guided linear motion and similar industrial automation environments.
Quality & Compliance
This is a genuine FESTO product, manufactured to FESTO’s global quality standards. All FESTO components undergo rigorous quality testing to ensure reliable performance across diverse industrial operating conditions. This product is manufactured in accordance with ISO 21287 standards.
