Product Overview

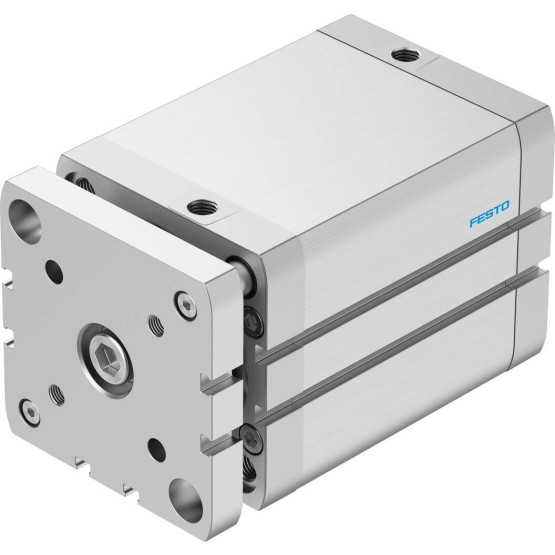

The ADNGF-80-50-PPS-A — part number 574064 — is a premium Guided Compact Cylinder from FESTO’s ADNGF lineup. With double-acting functionality and ISO 21287 compliance, it offers industrial users a dependable solution for their automation needs. FESTO’s rigorous quality control and precision engineering are evident in every aspect of this product’s design and construction.
Key Features
- Built-in magnetic piston supports non-contact position sensing via proximity switches
- Maintains the space-saving ISO 21287 footprint while adding guided functionality
- Builds on the compact ADN platform with added precision guidance capability
- Plain-bearing guide delivers significantly higher load capacity for pick-and-place tasks
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 574064 |
| Model | ADNGF-80-50-PPS-A |
| Series | ADNGF |
| Product Type | Guided Compact Cylinder |
| Bore Diameter | 80 mm |
| Stroke Length | 50 mm |
| Operating Mode | double-acting |
| Standard | ISO 21287 |
| Body Material | Wrought aluminum alloy, smooth-anodized |
| Rod Material | High-alloy steel |
| Seal Material | TPE-U (PUR) |
| Corrosion Resistance | CRC 2 |
| Brand | FESTO |
Applications
This product is suitable for assembly equipment, welding fixtures, and other applications requiring twist-resistant guided linear motion and similar industrial automation environments.
Quality & Compliance
This is a genuine FESTO product, manufactured to FESTO’s global quality standards. All FESTO components undergo rigorous quality testing to ensure reliable performance across diverse industrial operating conditions. This product is manufactured in accordance with ISO 21287 standards.
