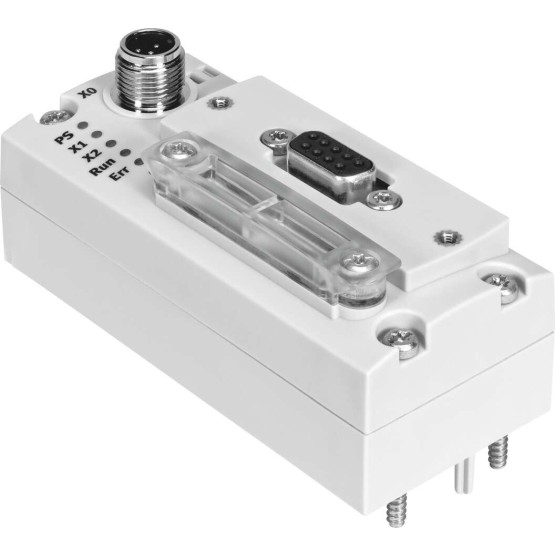

Description
Dimensions W x L x H 40 mm x 91 mm x 50 mm
Pitch dimension [mm] 40
Fastening type auf Elektrik-Anschaltungauf Elektrik-Anschlussplatte
Product weight [g] 90
Report DeviceNet
Fieldbus interface CAN bus
Fieldbus interface, report DeviceNet
Fieldbus interface, connection type Plug
Fieldbus interface, connection technology Sub-D
Fieldbus interface, number of pins / wires 9
Fieldbus interface information optionale Anschlusstechnik mit Zubeh?r:optionale Anschlusstechnik mit Zubeh?r: Micro Style (Stecker/Dose M12x1 A-codiert, 5-polig, Schutzart IP65) Open Style (Klemmleiste, 5-polig, Schutzart IP20)Open Style (Schraubklemme, 5-polig, Schutzart IP20)
Fieldbus interface, galvanically separated yes
Fieldbus interface, transfer rate 125 kbit/s250 kbit/s500 kbit/s
Internal cycle time 1 ms per 1 byte user data
Max. address volume inputs [Byte] 8
Max. address volume outputs [Byte] 8
Voltage supply, function Electronics and load
Voltage supply, connection type Plug
Voltage supply, connection technology M12x1 B coded to EN 61076-2-101
Voltage supply, number of poles/wires 5
Diagnosis UnterspannungKommunikationsfehlerSystemdiagnose
Parameterising DiagnoseverhaltenFailsafe- und Idle Reaktion
Additional functions Quick connectSystem status can be shown from process dat- Acyclical data access via “Explicit message”
Operating element DIL switch
LED display product specific PS: Operating voltage electronics and load supplyX1: System status module I port 1X2: System status module I port 2
LED display bus specific IO: I/O statusMNS: Network status
Operating voltage range DC [V] 18 to 30
Nominal operating voltage DC [V] 24
Intrinsic power input at operating voltage Type 65 mA
Max. power supply [A] 4,0
Permission RCM markc UL us – Listed (OL)
KC-mark KC-EMV
CE certificate (see declaration of conformity) to EU EMC directive
Corrosion resistant class KBK 2 – moderate corrosion stress
Bearing temperature [??C] -20 to 70
Protection category IP65IP67
Information about protection category in assembled conditionunused connection closed
ambient temperature [??C] -5 to 50
Housing material PAPC
Material information LABS containing materials includedRoHs compliant
Configuration support EDS file
