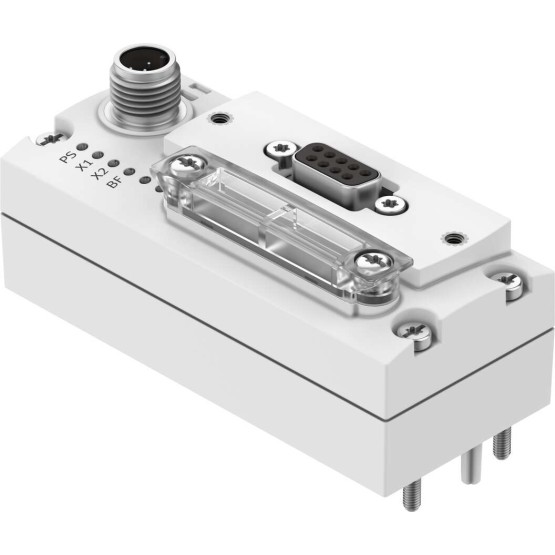

Description
Dimensions W x L x H 40 mm x 91 mm x 50 mm
Pitch dimension [mm] 40
Fastening type auf Elektrik-Anschaltungauf Elektrik-Anschlussplatte
Product weight [g] 90
Report EtherCAT
Fieldbus interface Ethernet
Fieldbus interface, report EtherCAT
Fieldbus interface, connection type 2x socket
Fieldbus interface, connection technology M12x1 D coded to EN 61076-2-101
Fieldbus interface, number of pins / wires 4
Fieldbus interface, galvanically separated yes
Fieldbus interface, transfer rate 100 Mbit/s
Internal cycle time 1 ms per 1 byte user data
Max. address volume inputs [Byte] 16
Max. address volume outputs [Byte] 16
Voltage supply, function Electronics and load
Voltage supply, connection type Plug
Voltage supply, connection technology M12x1 A coded to EN 61076-2-101
Voltage supply, number of poles/wires 5
Diagnosis UnterspannungKommunikationsfehlerSystemdiagnose
Parameterising Diagnose aktivierenFailsafe- und Idle Reaktion
Additional functions Emergency messageModular device profile (MDP)- Acyclical data access via “SDO”Diagnose object
Operating element DIL switch
LED display product specific PS: Operating voltage electronics and load supplyX1: System status module I port 1X2: System status module I port 2
LED display bus specific L/A1: Network active port 1L/A2: Network active port 2Run: Communication status
Operating voltage range DC [V] 18 to 30
Nominal operating voltage DC [V] 24
Intrinsic power input at operating voltage Type 60 mA
Max. power supply [A] 4,0
Permission RCM markc UL us – Listed (OL)
KC-mark KC-EMV
CE certificate (see declaration of conformity) to EU EMC directive
Corrosion resistant class KBK 2 – moderate corrosion stress
Bearing temperature [??C] -20 to 70
Protection category IP65IP67
Information about protection category in assembled conditionunused connection closed
ambient temperature [??C] -5 to 50
Housing material PA
Material information LABS containing materials includedRoHs compliant
Configuration support XML file
