Home » Products » SRBG-C1-N-1-AS-M12-M12

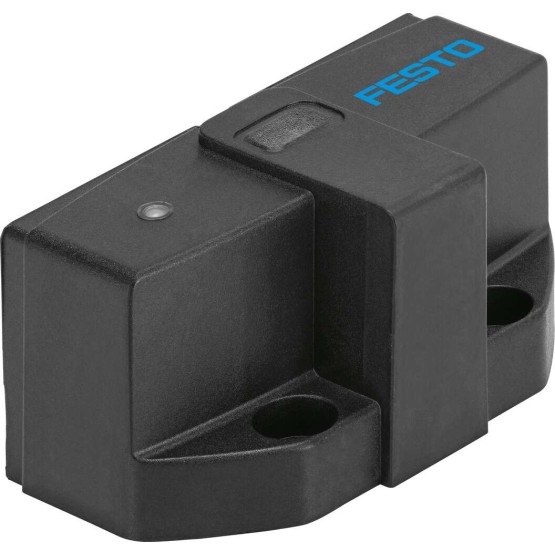

SRBG-C1-N-1-AS-M12-M12

$238.33

Limit Switch is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:SRBG-C1-N-1-AS-M12-M12

FESTO Order Number:3567908

SKU: SRBG-C1-N-1-AS-M12-M12 Category: Tag:

Description

Design Angular
Based on standard EN 60947-5-2VDI/VDE 3845
Permission RCM markc UL us (OL)
CE certificate (see declaration of conformity) to EU EMC directive
KC-mark KC-EMV
Material information LABS containing materials includedRoHs compliant
Measurement principle Inductive
ambient temperature [??C] -25 to 70
Control output As interface
Switching element function Opener/closer switchable
Max. switching frequency [Hz] 100
Max. switch off voltage DC [V] 26,4
Max. output current DC [mA] 100
Max. switching capacity DC [W] 2,5
Report As interface
As interface, report version V3.0
As interface, addressing area 1A … 31A (0)1B … 31B
As interface, product identification IO code: DID-Code: AID1 code: 7ID2 code: E
Operating voltage range DC [V] 26.5 to 31.6
Empty run current [mA] <= 35 mA Electrical connection: input M12x14 pinPlug Electrical connection: outlet M12x14 pinsocket / container / ??. installation position arbitrary Product weight [g] 70 Housing material PBT Screws material High-alloyed stainless steels Operation-readiness display LED green Switching status indicator LED yellow Status display LED yellow = Valve switching statusLED red = Wire break / short circuit on valve Bearing temperature [??C] -25 to 70 Protection category IP67 Shock resistance Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 Oscillation strength Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6 Degree of contamination 3
