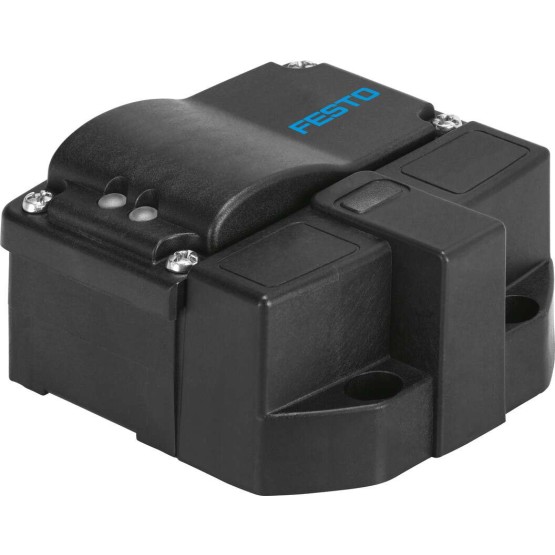

Description
Design Angular
Based on standard EN 60947-5-2VDI/VDE 3845
Permission CCCRCM Markc UL us (OL)
CE certificate (see declaration of conformity) to EU EMC directive
KC-mark KC-EMV
Material information LABS containing materials includedRoHs compliant
Measurement principle Inductive
ambient temperature [??C] -25 to 70
Control output Contactless 2-wire
Switching element function NO contact
Max. switching frequency [Hz] 500
Max. output current DC [mA] 100
Operating voltage range DC [V] 6 to 60
Electrical connection: input M12x14 pinPlug
installation position arbitrary
Product weight [g] 70
Housing material PBT
Screws material High-alloyed stainless steels
Switching status indicator LED yellow
Bearing temperature [??C] -25 to 70
Protection category IP67
Shock resistance Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Oscillation strength Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Degree of contamination 3
Voltage drop [V] <= 6 V
Residual current [mA] 0 to 1
Reverse polarity protection for all electrical connections
Minimum load current 4 mA
